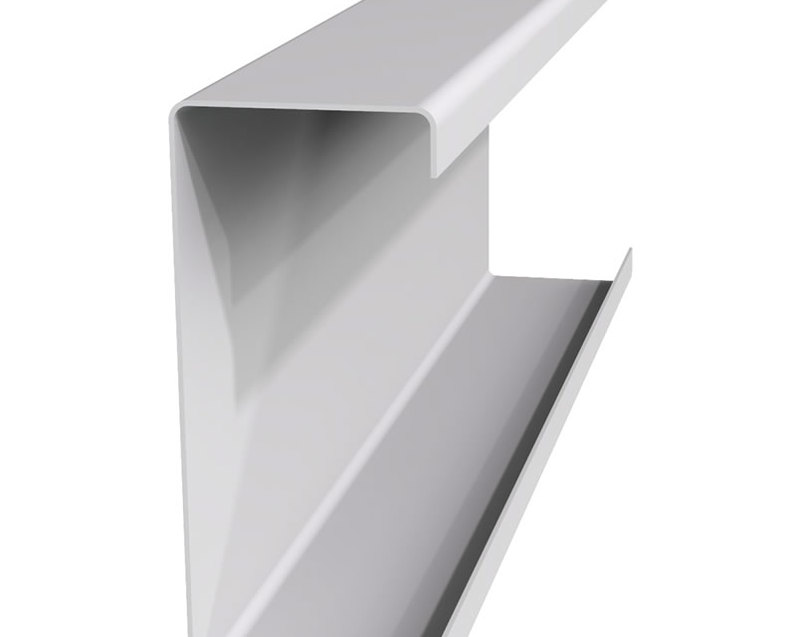

Cee metal purlins

Brand : Colorbond

Product description

Cee/Zed are used for roofs and side cladding. Cee/zed purlins are available cut to lengths to meet customer request.

Metal grade: G 450
Average Tensile strength: 480 Mpa
Average Yield strength: 460 Mpa
Galvanized coating: Z 275

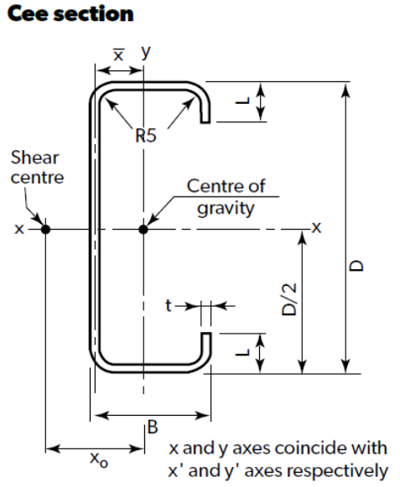

Dimensions available:
Reference Thickness
(mm)
Depth
(mm)
B
(mm)
L
(mm)
Indicative weight / lm
Cee8020 2.00mm 80 50 10 2.91 Kg / lm
Cee10020 2.00mm 100 50 14 3.46 kg / lm
Cee15020 2.00mm 150 65 18 4.84 kg / lm
Cee15024 2.40mm 150 65 18 5.81 kg / lm
Cee20020 2.00mm 200 75 20 6 kg / lm
Cee20024 2.40mm 200 75 20 7.2 kg /lm
Cee22520 2.00mm 225 75 20 6.4 kg / lm
Cee22524 2.40 mm 225 75 20 7.68 kg / lm
Cee25020 2.00mm 250 75 20 6.8 kg / lm
Cee25024 2.40mm 250 75 20 8.1 kg / lm
